Key Specifications
Product Information
Hardware Specifications
Product Information
Warranty
- 3 years

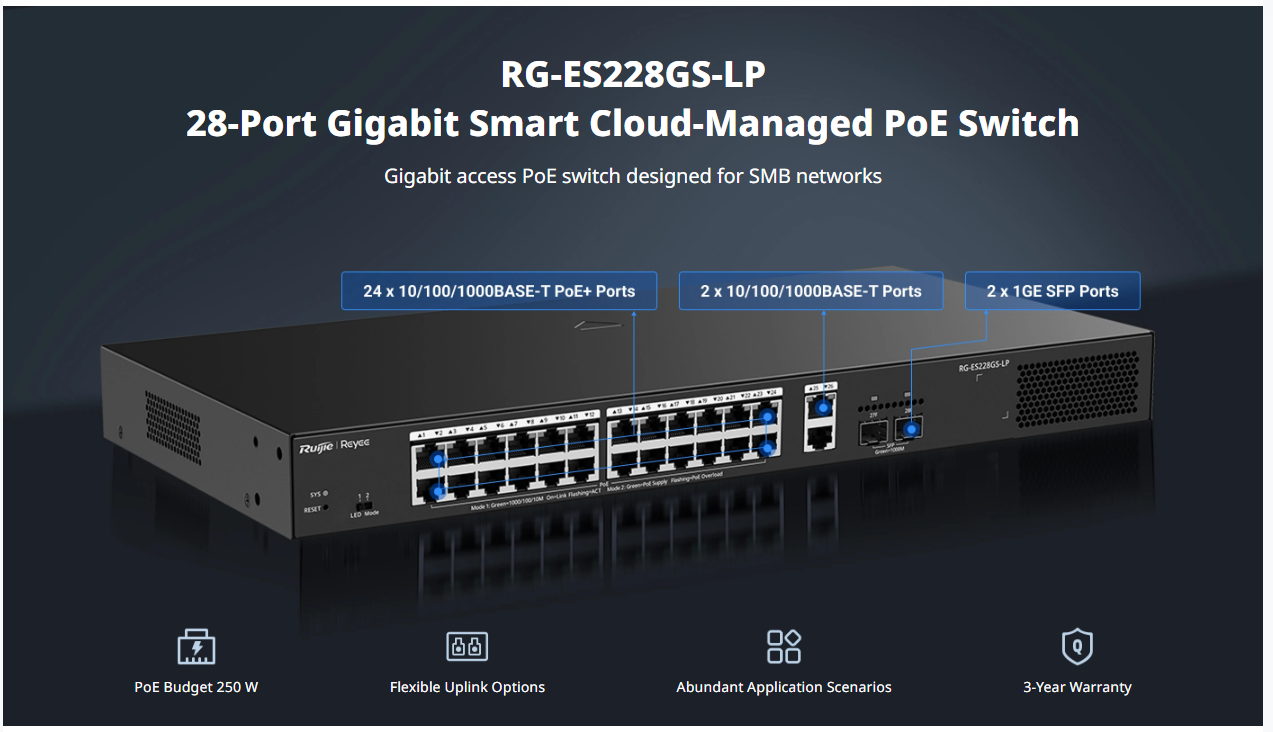

Port Specifications
Total number of RJ45 ports
- 26
Total number of optical ports
- 2
Number of 1GE SFP ports
- 2
Number of 10/100/1000BASE-T ports
- 26
Power Supply and Consumption
Number of PoE Out ports
- 24
Number of PoE/PoE+ Out ports
- 24
PoE budget
- 250 W
PoE power pins
- 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
- 41.66 Mpps
Switching capacity
- 56 Gbps(bit/s)
Environment and Reliability
Operating temperature
- 0°C to 40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
- Yes
Security
Port isolation
- Yes
