| Display | |
| Model |

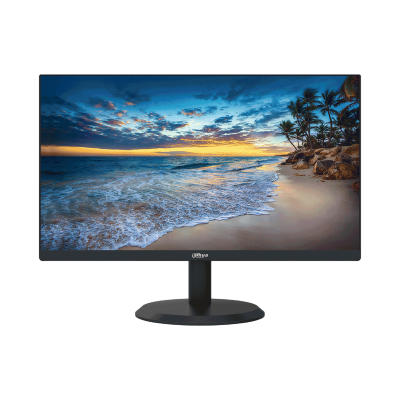

DHI-LM22-H200 |
| LCD Technology |
VA |
| Backlight |
ELED |
| Screen Size |
21.45 inch |
| Aspect Ratio |
16:9 |
| Viewing Size |
478.656 (H) × 260.28 (V) mm |
| Viewing Angle |
178° (H) / 178° (V) |
| Display Mode |
Horizontal |
| Pixel Pitch |
0.2493 mm × 0.241 mm |
| Pixels Per Inch |
102.69 |
| Resolution |
1920 (H) ×1080 (V) |
| Refresh Rate |
100 Hz |
| Display Color |
10 bit (8 bits+FRC) |
| Color Gamut |
72% NTSC (typ.) |
| Brightness |
250 cd/m² (typ.) |
| Contrast Ratio |
3000:1 |
| Response Time |
OD 6 ms |
| Operation Hours |
7 × 24 h |
| Lifespan |
30,000 hrs |
| Device Ports | |
| Input Port |
1 × VGA (1920 × 1080@60 Hz), 1 × HDMI 1.4 (1920 × 1080@100 Hz),1 × Audio |
| Speaker |
2 × 1.5 W |
| Power & Environmental Conditions | |
| Power Supply |
12 VDC, 2 A |
| Power Type |
Power adapter |
| Power Consumption |
11 W (basic), 17 W (typ.), 21 W (max) |
| Standby Power Consumption |
<0.5 W |
| Operating Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity |
10% – 85% (RH) |
| Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity |
5%–90% (RH) |
| General | |
| Product Dimensions |
491.7 mm × 285.1 mm × 38.9 mm (19.36" × 11.22" × 1.53") (W × H × D) without base |
| Package Size |
553 mm × 365 mm × 112 mm (21.77" × 14.37" × 4.41") (W × H × D) |
| Frame Width |
U/L/R/D: 1.6 mm/1.6 mm/1.6 mm/16.8 mm |
| Net Weight |
2.3 kg (5.07 lb) |
| Gross Weight |
3.3 kg (7.28 lb) |
| Casing Color |
Black |
| Control Mode |
Five-button |
| Wall Mount VESA |
75 mm × 75 mm (2.95" × 2.95") |
| Accessory |
Power adapter, base, HDMI cable, user's manual (QR code), QSG, legal and regulatory information, etc. |
| Certification | |
| Certifications |
CE EMC, CE LVD, CE ERP |
